Semi-electric stacker - Light-duty - Low cost operation.
Description

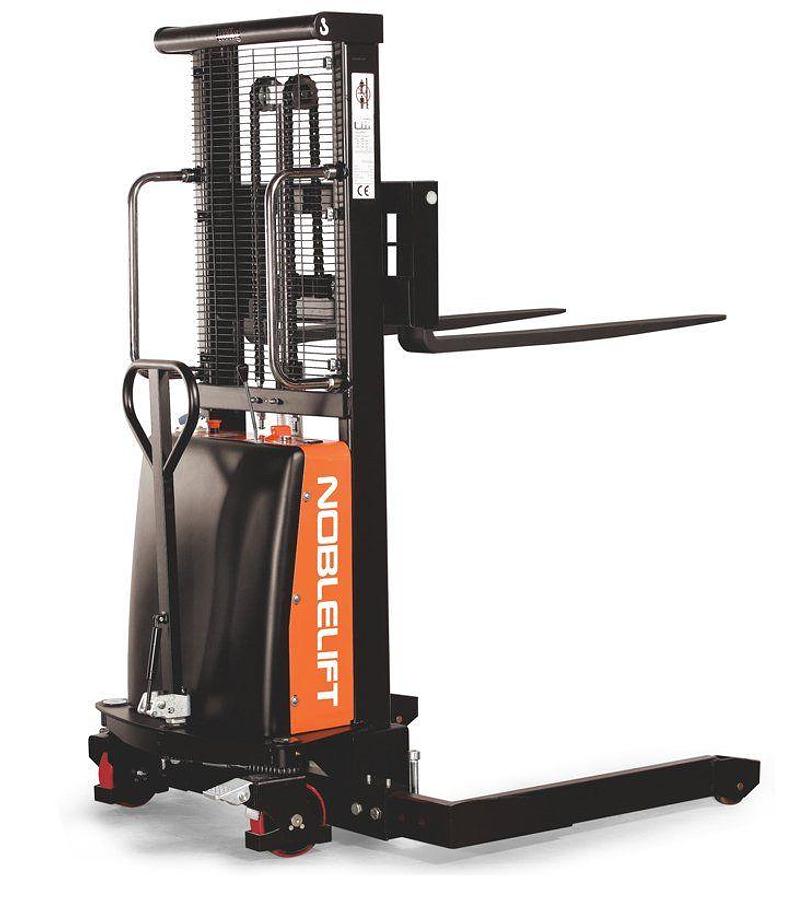

SPN22AG Semi-Electric Stacker
The SPN22AG 2,200lb capacity, semi-electric stacker is available in (4) different maximum lift heights and is designed for light-duty lifting of loads, skids, racks and objects.The lifting is electric powered with the controls conveniently mounted on the dash. It is manually propelled. Forks and straddle legs can adjust from side to side to accommodate different skid widths.
This ergonomic stacker is also equipped with a built-in battery charger, a battery gauge on/off key switch, an operator protection screen, foot pedal parking brake, dual-push handles mounted to the mast at a comfortable height, and a spring-loaded steering handle with comfort grip. Semi-electric - Excellent value!
FEATURES

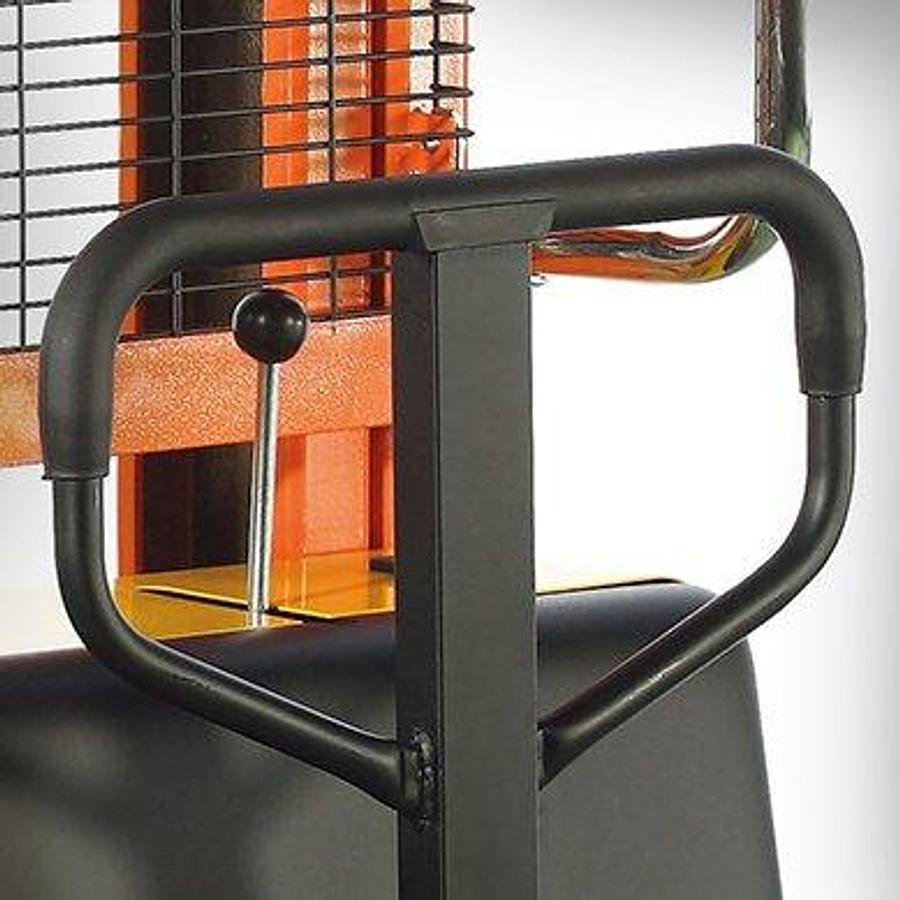

Ergonomic Comfort Grip Handle

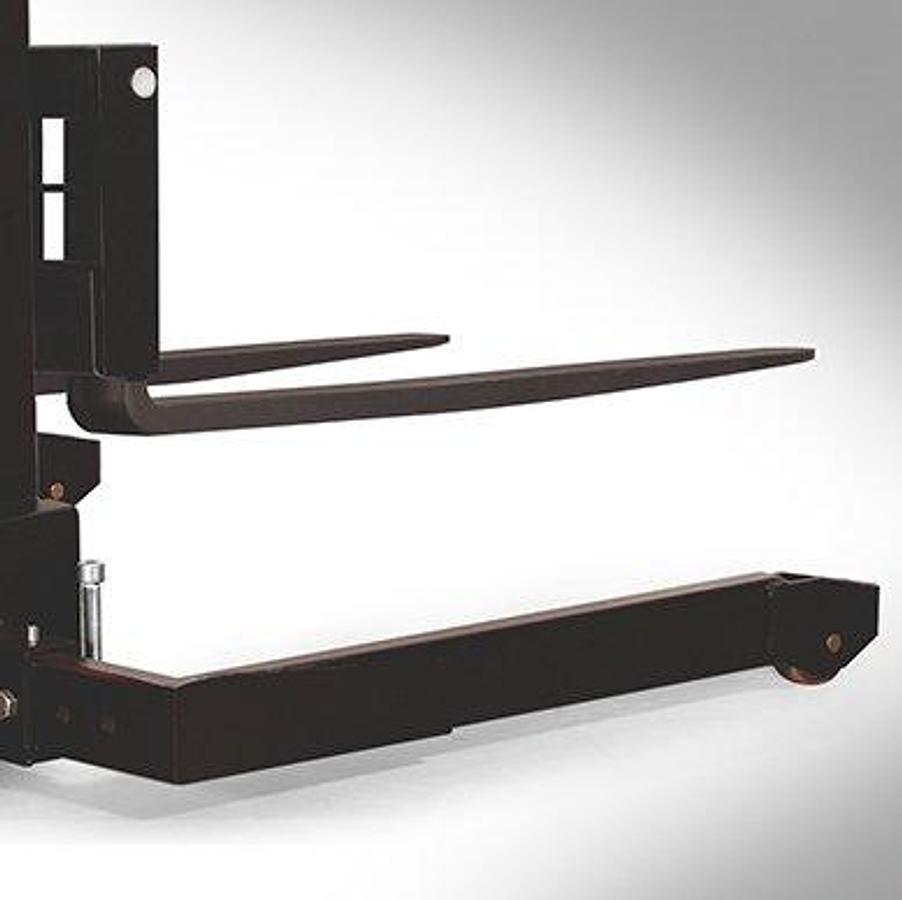

Adjustable Forks and Straddle Legs.Forks lower to the minimum height of 2 1/8".
Two-Swivel and Two Rigid Castersprovides four-wheel support for heavy loads.

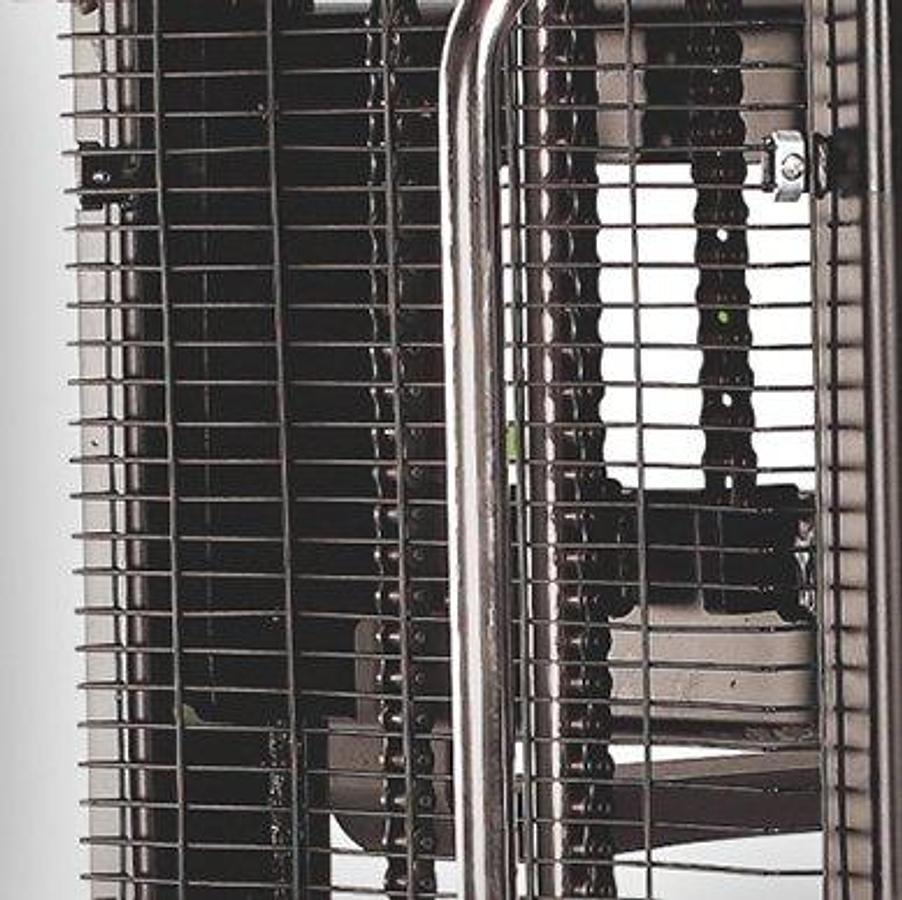

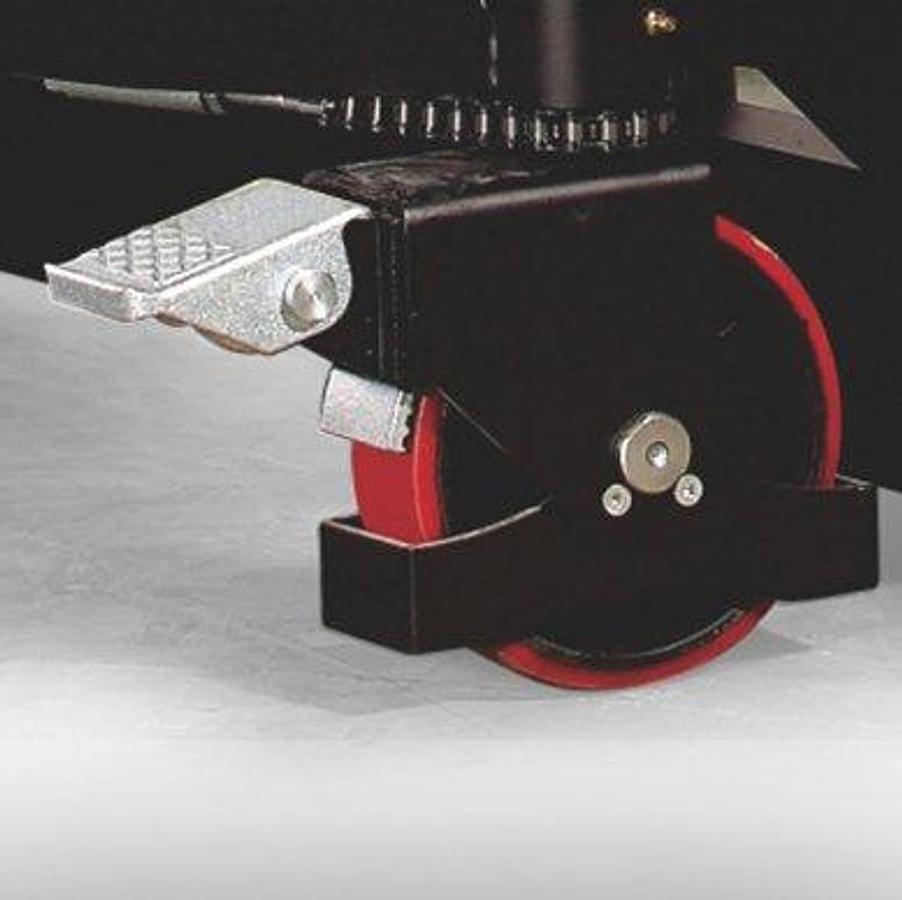

Foot Pedal Parking Brake and Safety Screenensure safety during operations.
Sturdy and Reliable Mastmade of rolled U-profiles. Hard chrome plated pistons. Adjustable lifting chain. Powerful lift motor with 2.1 HP.

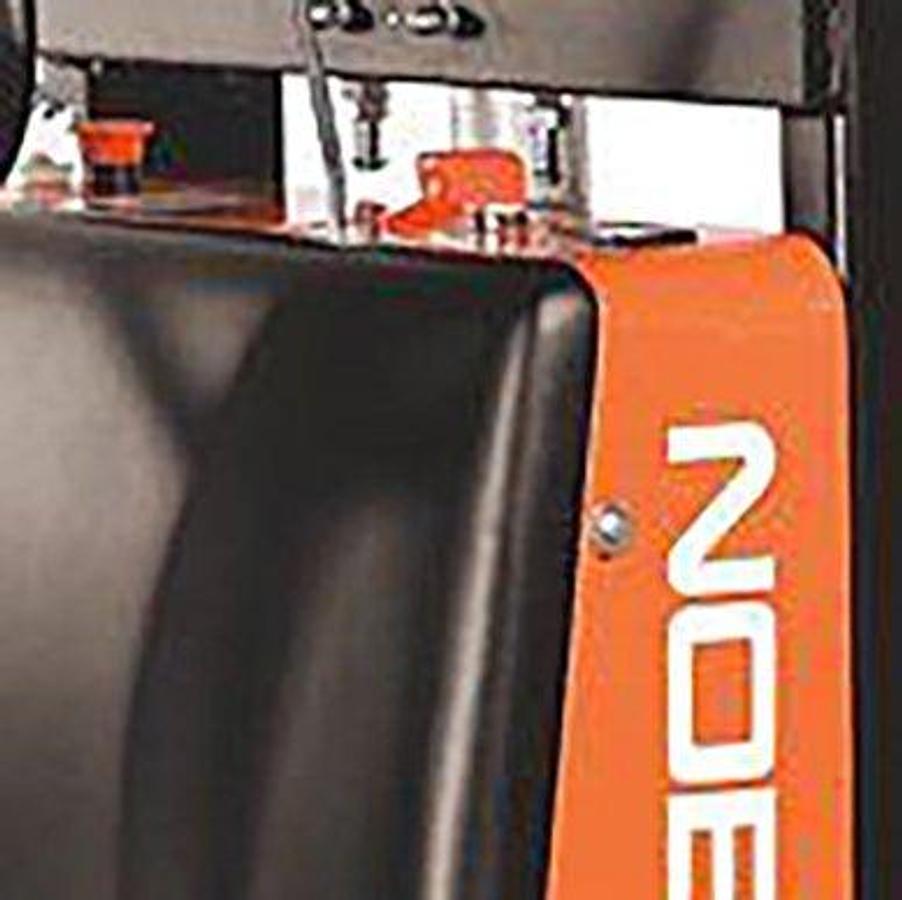

Integrated 150 AH Maintenance Free Batterysupplies strong power to support frequent lifting tasks, an integrated charger facilitates easy and reliable charging of the built-in battery.
Specifications
| Condition | New |
| Unit Type | Semi-Electric |
| Load Capacity | 2,200lb |
| Load Center | 24" |
| Power | 12V/100Ah |
| Battery Charger | Built-In |
| Fork Dimensions | 42" |
| Max Lift Height | 63" |
| Min Lift Height | 2.13" |
| Mast Stages | 1 |
| Turning Radius | - |
