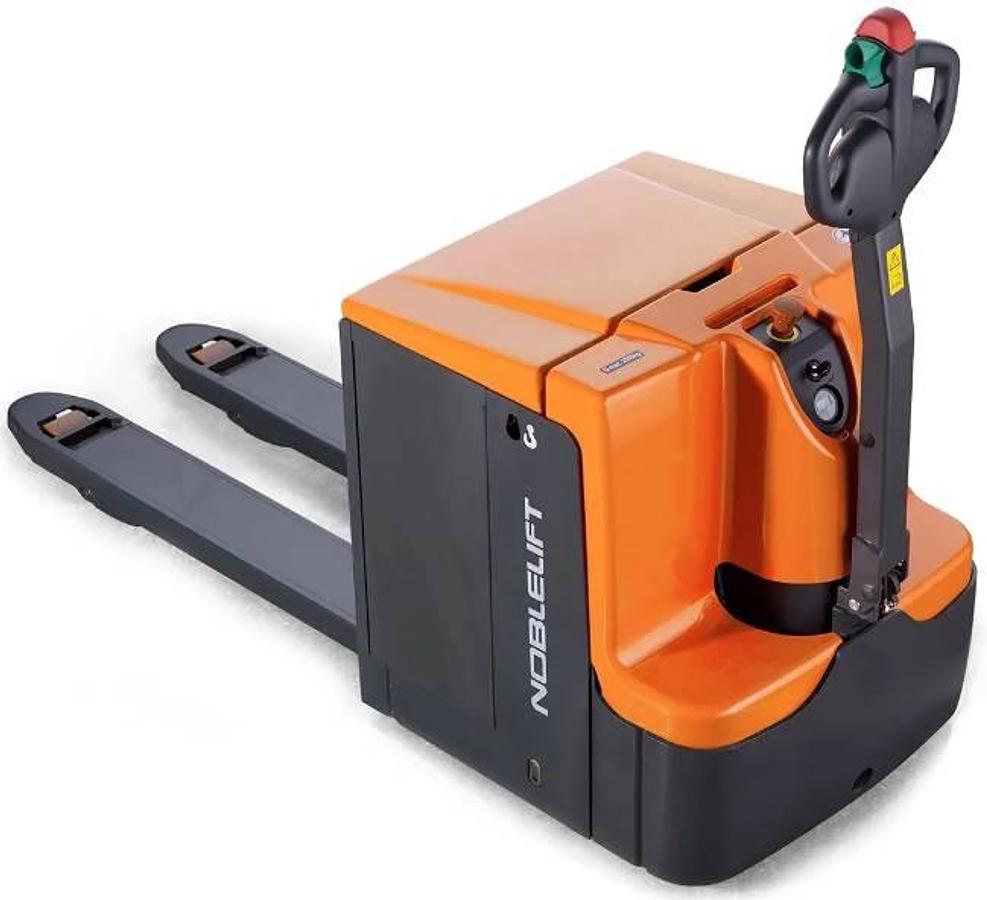

2024 Noblelift PT55L
Description
Load Capacity: 5500 lb. Forks: 27”x48”
ZAPI Controller

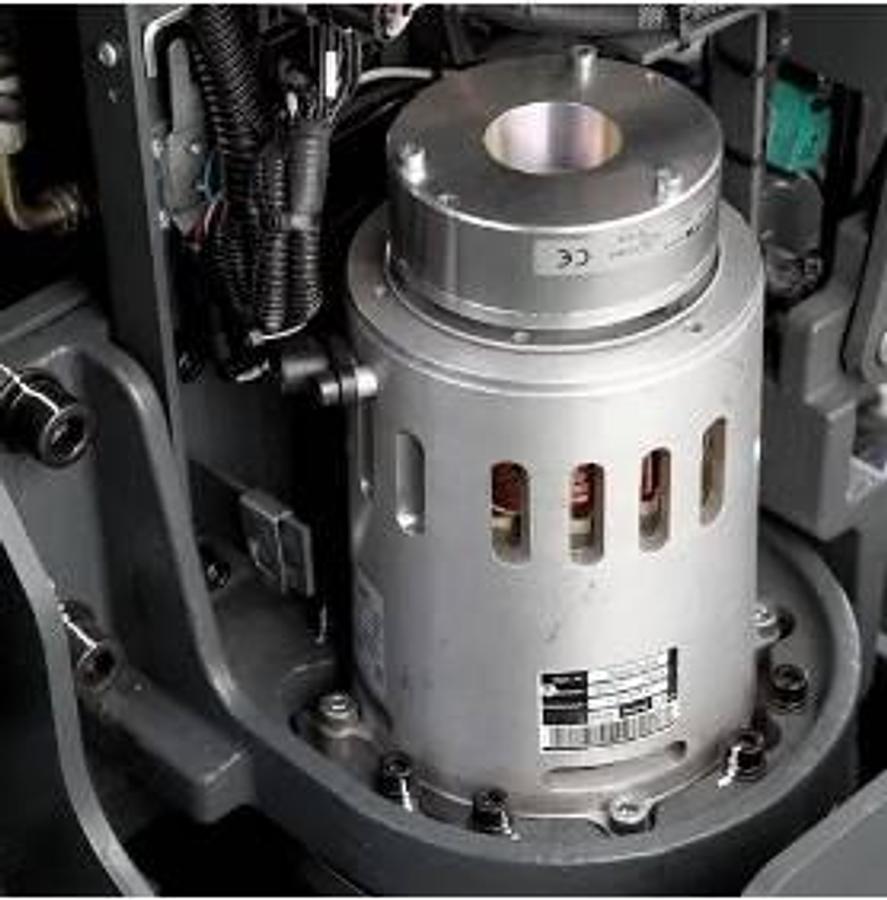

German AC Drive & Gearbox
Pin Wheel Turn
German Dual Stability Casters
German Wicke Drive Wheels
German REMA Tiller

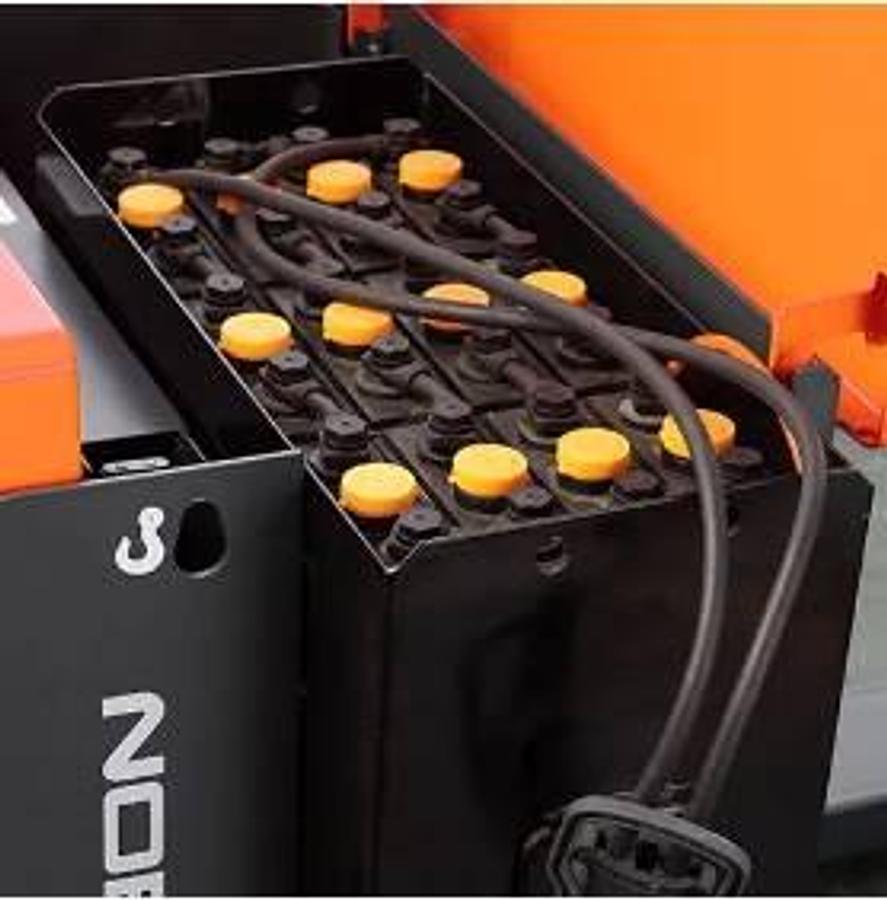

Battery: 24V/350Ah Industrial
Charger: 24V/45A
Specifications
| Manufacturer | Noblelift |
| Model | PT55L |
| Year | 2024 |
| Condition | New |
| CAPACITY | 5500 |
| FUEL | Electric |
| MAST TYPE | Six inch lift (walkie) |
| MAST HEIGHT | 8 in |
| SIDE SHIFTER | No |
| HOUR METER | 0 |
| Type | Forklift |
| Subtype | Electric Walkie Pallet Jack |
| Power Supply | Electric |
| Overall Length | approximately 65-85 inches (varies with fork length) |
| Overall Width | approximately 27 inches |
| Overall Height (handle in vertical position) | approximately 48 inches |
| Fork Width | approximately 7 inches per fork |
| Fork Height | approximately 3 inches when lowered |
| Turning Radius | approximately 60 inches |
| Load Capacity | 5,500 lbs |
| Travel Speed | approximately 3.4 mph (unloaded), 3.2 mph (loaded) |
| Lift Speed | approximately 1.2 inches/sec (unloaded), 0.8 inches/sec (loaded) |
| Lowering Speed | approximately 1 inch/sec (unloaded), 1.2 inches/sec (loaded) |
| Battery Type | Maintenance-free lead-acid or lithium-ion options available |
| Battery Voltage | 24V |
| Charging Time | Approximately 6-8 hours (depends on battery type) |
| Emergency Stop | Standard |
| Automatic Braking | Standard |
| Ergonomic Handle | Yes, for improved operator comfort |
| Horn | Standard |
