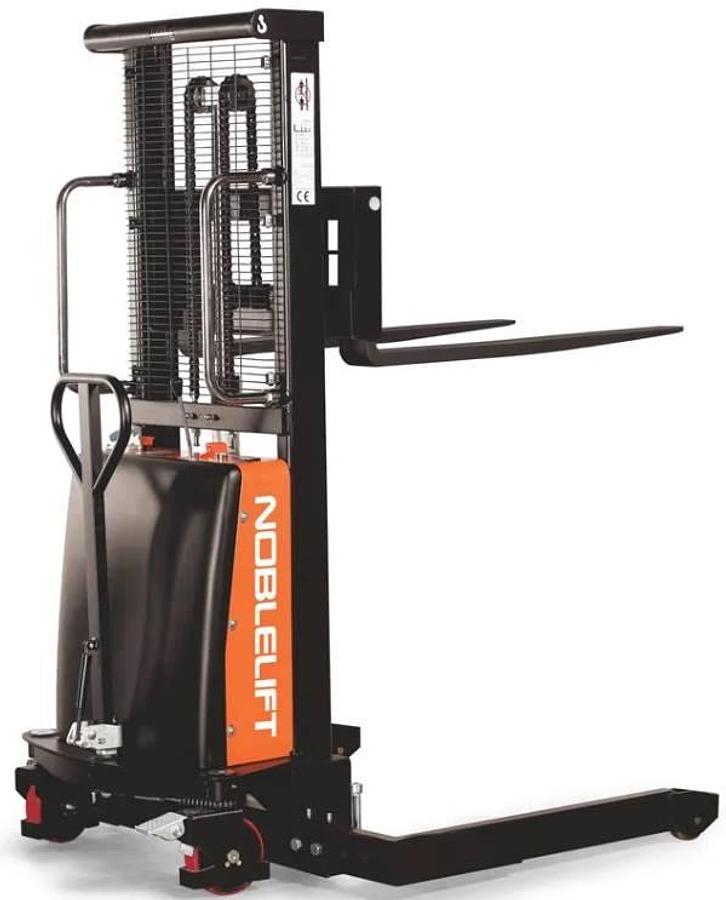

2024 Noblelift SPN22
Description
Load Capacity: 2200 lb.
Lift Height: 118”

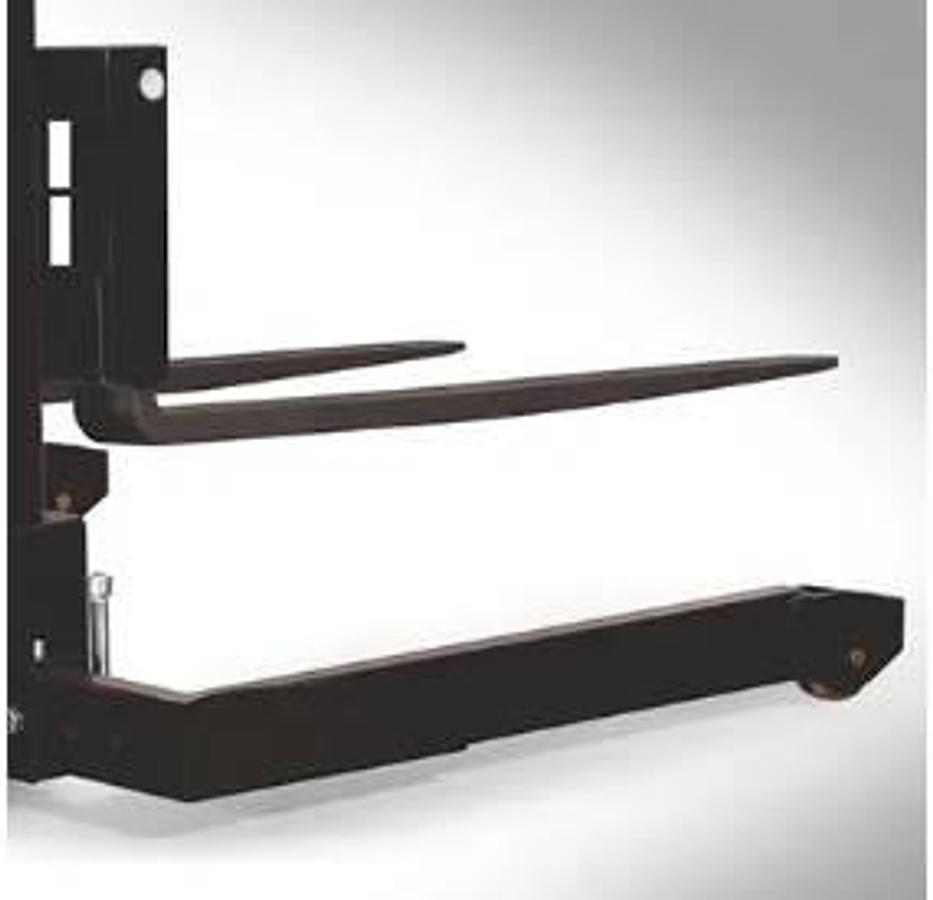

Forks: 42”
Load Center: 24”
Adjustable Forks 8.3-28.3” OD
Adjustable Base Legs 46-58” OD
Polyurethane Wheels
Battery: 12V/100Ah
Charger: On-board 24V/10A 110V
Optional: Fork-over or fixed legs
Specifications
| Manufacturer | Noblelift |
| Model | SPN22 |
| Year | 2024 |
| Condition | New |
| CAPACITY | 2200 |
| FUEL | Electric |
| MAST TYPE | Two Stage |
| MAST HEIGHT | 118 in |
| SIDE SHIFTER | Yes |
| HOUR METER | 0 |
| Type | Forklift |
| Subtype | Electric Walkie Straddle Stacker |
| Power Source | Electric |
| Load Capacity | 2,200 lbs |
| Drive Motor | 0.66 hp |
| Lift Motor | 2.2 hp |
| Travel Speed (laden/unladen) | 2.5 / 3.1 mph |
| Overall Length | 74.8 inches |
| Overall Width | 54.3 inches |
| Overall Height (minimum) | 78.9 inches |
| Fork Length | Varies |
| Fork Width | 6.3 inches |
| Fork Thickness | 2.2 inches |
| Service Weight with Battery | 2,645 lbs |
| Battery Voltage | 24V |
| Battery Capacity | 210 Ah |
| Wheelbase | 49 inches |
| Ground Clearance | 1.4 inches |
| Drive Wheel | Polyurethane |
| Load Wheel | Polyurethane |
| Number of Wheels (x=driven) | 1x + 4 |
