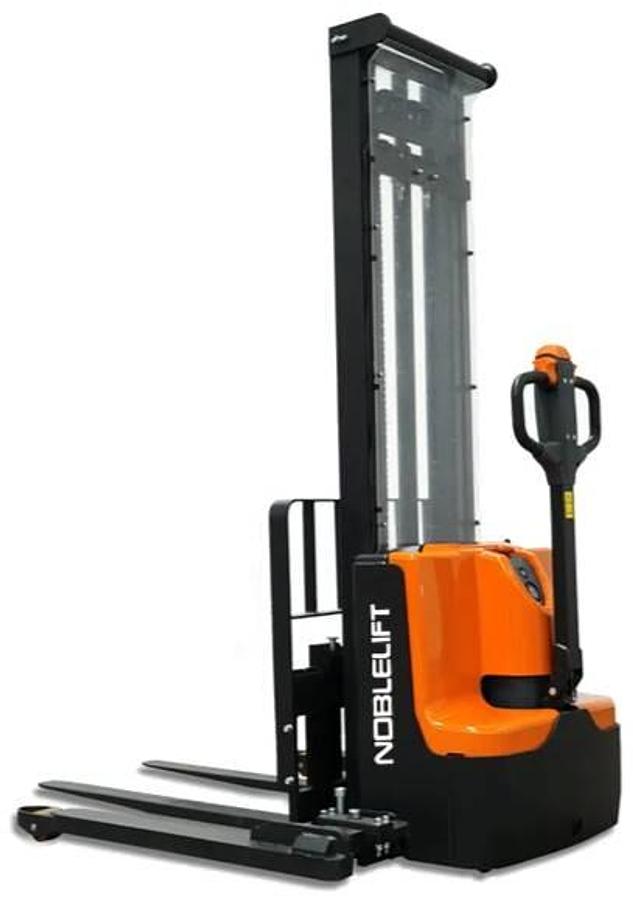

2024 Noblelift PSE22SL-138
Description
Load Capacity: 2200 lb.
Lift Height: 138"
Collapsed: 88”
Forks: Class II 42”
Load Center: 24”
Pin Wheel Turn
CURTIS Controller
LBR (Load Back Rest)
Battery: 2x12V/85Ah
Charger: On-board 24V/10A 110V
Specifications
| Manufacturer | Noblelift |
| Model | PSE22SL-138 |
| Year | 2024 |
| Condition | New |
| CAPACITY | 2200 |
| FUEL | Electric |
| MAST TYPE | Unavailable |
| MAST HEIGHT | 114 in |
| SIDE SHIFTER | Yes |
| HOUR METER | 0 |
| Type | Forklift |
| Subtype | Electric Walkie Straddle Stacker |
| Fuel Type | Electric |
| Overall Length | 68 inches |
| Overall Width | 50 inches |
| Overall Height | 77 inches |
| Fork Length | Varies |
| Wheelbase | 53 inches |
| Turning Radius | 55 inches |
| Ground Clearance | 1.5 inches |
| Load Capacity | 2,200 lbs |
| Load Center | 23.6 inches |
| Travel Speed Loaded | 3.1 mph |
| Travel Speed Unloaded | 3.4 mph |
| Max Gradeability Loaded | 5% |
| Max Gradeability Unloaded | 10% |
| Battery Voltage | 24V |
| Battery Capacity | 210 Ah |
| Drive Motor | 1.5 kW |
| Lift Motor | 3 kW |
| Drive Wheel Material | Polyurethane |
| Load Wheel Material | Polyurethane |
| Number of Wheels | 1x / 4 |
| Drive Wheel Size | 10 inches |
| Load Wheel Size | 3 inches |
| Service Brake | Electromagnetic |
