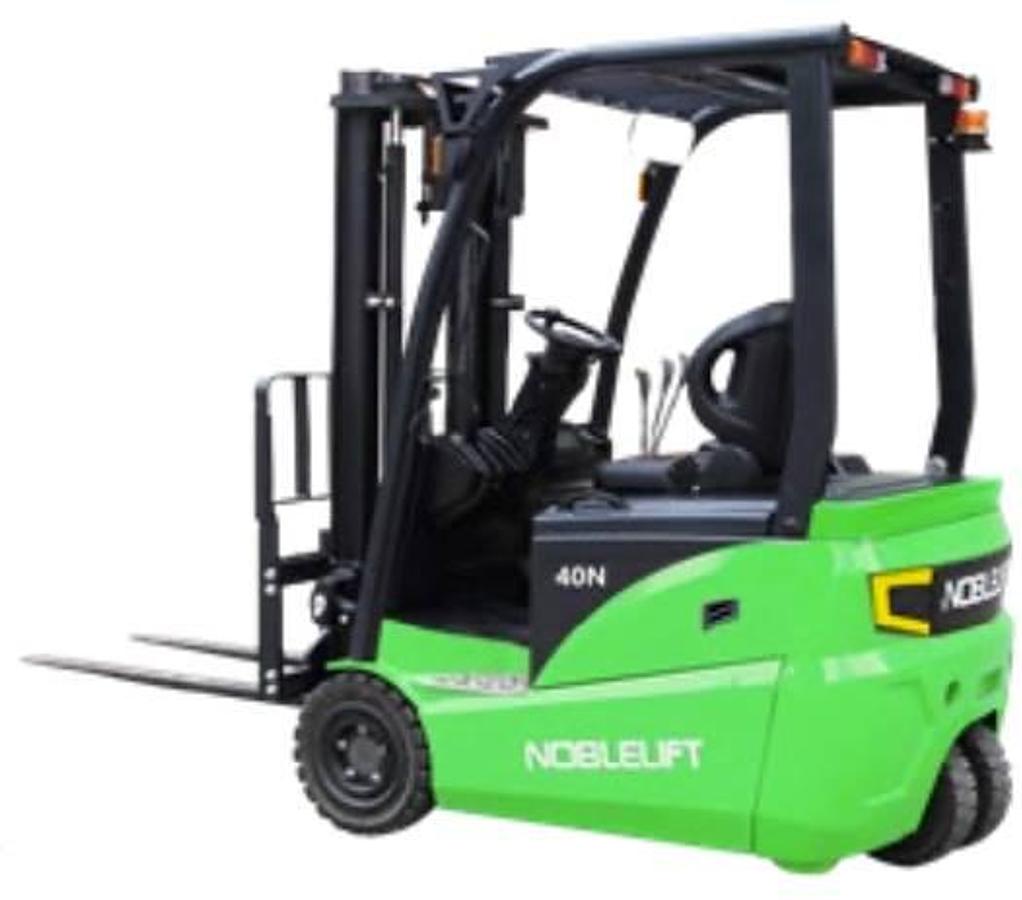

2024 Noblelift FE3D35N
Description
Load Capacity: 3500 lb.
Lift Height: 189” Collapsed: 87.5” Forks: 42”
Load Center: 24” Side Shift
Free lift: 46”
Tilt: 5F/7°B
InMotion Controller
Dual AC Drive Motor
Wet Disc Brakes
LBR 48” (Load Back Rest)
Blue Lights,
Rear Work Lights
Rear Grab Bar w/ Horn
Solid Pneumatic Wheels
Dual Rearview Mirror
F/R Button on Lever
48V/200A 208-240V or 480V 3 Phase Charger
Specifications
| Manufacturer | Noblelift |
| Model | FE3D35N |
| Year | 2024 |
| Condition | New |
| CAPACITY | 3500 |
| FUEL | Electric |
| MAST TYPE | Three Stage |
| MAST HEIGHT | 189 in |
| SIDE SHIFTER | Yes |
| HOUR METER | 0 |
| Type | Forklift |
| Subtype | Electric 3 Wheel Sit Down |
| Total Length | Approximately 94.5 inches |
| Total Width | Approximately 42.1 inches |
| Height Overhead Guard | Approximately 82.7 inches |
| Wheelbase | Approximately 56.7 inches |
| Ground Clearance at Center of Wheelbase | Approximately 3.5 inches |
| Service Weight | Approximately 7,275 lbs |
| Axle Load without Load (Front/Rear) | Approximately 3,500 lbs / 3,775 lbs |
| Tire Type | Solid Pneumatic |
| Tire Size Front | 18x7-8 |
| Tire Size Rear | 15x4.5-8 |
| Load Capacity | 7,700 lbs |
| Travel Speed with/without Load | 8 mph / 8.5 mph |
| Lifting Speed with/without Load | 98 ft/min / 105 ft/min |
| Lowering Speed with/without Load | 98 ft/min / 95 ft/min |
| Maximum Gradeability with Load | 15% |
| Drive Motor | 13 hp |
| Lift Motor | 18 hp |
| Battery Voltage | 80V |
| Battery Capacity | 420 Ah |
| Steering Type | Hydraulic |
| Turning Radius | Approximately 58 inches |
| Fork Length | Varies |
| Fork Width | Approximately 6 inches |
| Fork Thickness | Approximately 2 inches |
