2024 Noblelift FE4P50N-189
Description
Load Capacity: 5000 lb.
Lift Height: 189”
Collapsed: 88”
Forks: 42”
Load Center: 24”
Side Shift / Fork Positioner
Free lift: 49.5”
Tilt: 6F/10°B
InMotion Controller
AC Drive Motor
LBR 48” (Load Back Rest)
Blue Lights,
Rear Work Lights
Rear Grab Bar w/ Horn

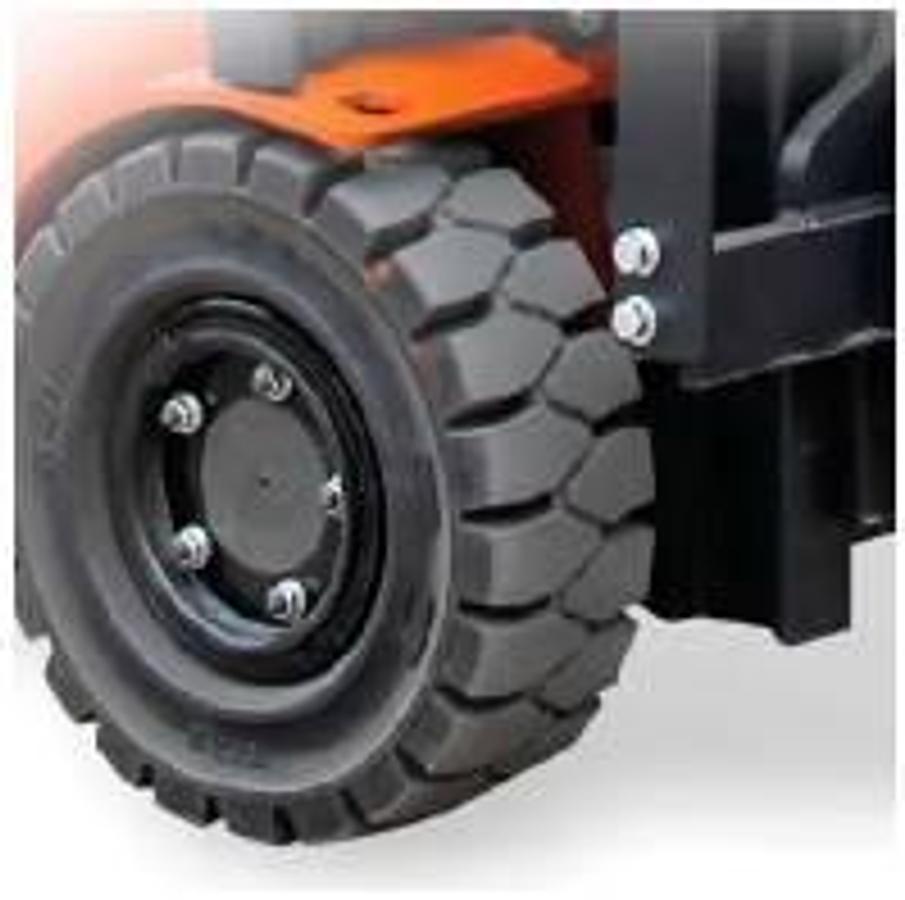

NM Solid Pneumatic Wheels
Dual Rearview Mirror
F/R Button on Lever

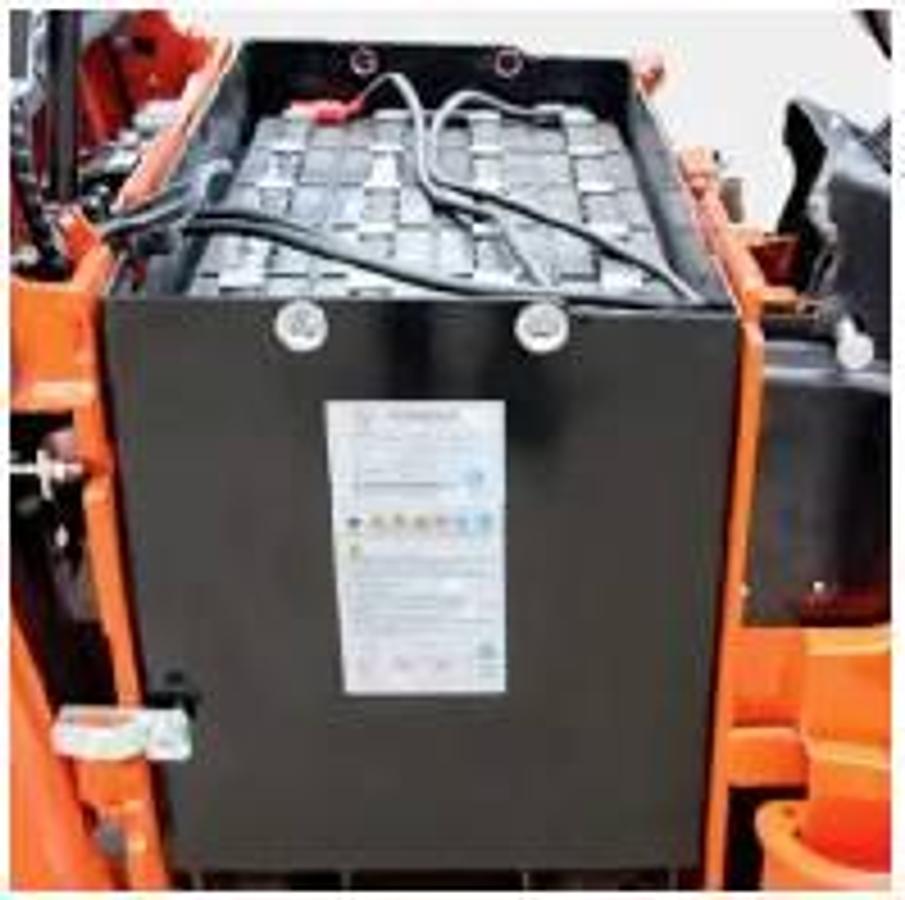

48V/600Ah Lead Acid
48V/80A 208-240V or 480V 3 Phase Charger
Specifications
| Manufacturer | Noblelift |
| Model | FE4P50N-189 |
| Year | 2024 |
| Condition | New |
| CAPACITY | 5000 |
| FUEL | Electric |
| MAST TYPE | Three Stage |
| MAST HEIGHT | 189 in |
| SIDE SHIFTER | Yes |
| HOUR METER | 0 |
| Type | Forklift |
| Overall Length | 160 inches (including forks) |
| Overall Width | 60 inches |
| Overall Height | 86 inches |
| Ground Clearance | 6.5 inches |
| Wheelbase | 86 inches |
| Total Weight | 16,535 lbs |
| Rated Load Capacity | 11,000 lbs |
| Load Center | 24 inches |
| Power Source | Electric |
| Battery Voltage | 80V |
| Travel Speed | 11 mph (with/without load) |
| Lift Speed | 1.2 ft/s (no load) |
| Lowering Speed | 1.5 ft/s (no load) |
| Front Tires | Solid Pneumatic |
| Rear Tires | Solid Pneumatic |
| Tire Size Front | 8.25-15 |
| Tire Size Rear | 7.00-12 |
| Brakes | Hydraulic |
| Steering | Power Steering |
| Standard Seat | Adjustable with safety belt |
